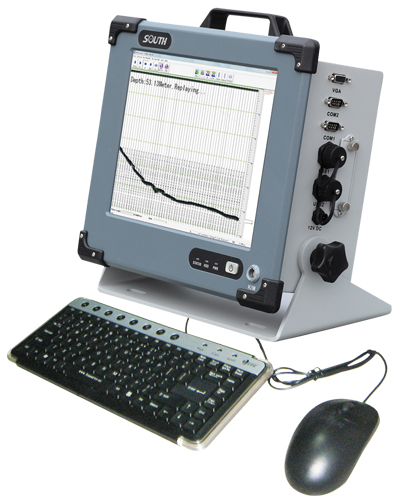

KOLIDA-SDE-28+ Single Frequency digital echo sounder

Add to wishlistAdded to wishlistRemoved from wishlist 0

* Frequency- 200kHz
* Beam Angle- 7
* Depth Resolution- 0.1ft/0.01m
* Accuracy- ±1cm ±0.1% of depth value.
* Comply all current IHO & industry hydrographic requirements for single beam echo sounders.
* Depth Range 0.3-600m
* Ping Rate- 14Hz, Maximum 30Hz
* Sound Velocity- 1300-1700 ms-1
*Power 9-15VDC
* 12.1 inch color LCD touch screen display.
* I/O Interface RS232-2, USB-2 & VGA-1.
* Position input – NMEA-0183 from GNSS/DGNSS.
* Output data Formats- SOUTH, SDH-13D, DES0 25, Inn455, ODOM, etc.
* Draft 0-10 m
* Embedded Windows XP OS.
* Onboard acquisition and navigation software (SDE & PowerNav).
* System CPU 1.6GHz & 2GB internal memory.
* Dimension 35 x 29 x 14 cm.
* Weight 7.5kg
* With keyboard & mouse.
* With transducer mounting pole (2m), echosounder carrying case and other standard cables & accessories.

Download Brochure

Unit Quantity
Echo Sounder SDE-28S+ 1
Carrying Case (for echo sounder) 1
200KHz Transducer 1
Transducer Pole 1
Carrying Case for Transducer 1
Double RS-232 Communication Cable 1
220V External Power Supply Cable 1
220V External Power Supply Cable Adapter 1
12V External Power Supply Transfer Cable 1
Keyboard (USB) 1
Mouse (USB) 1
Adapter Cable for Mouse & Keyboard 1
Pen Drive 1
SDE-28S+ Software on board 1
PowerNav Software (with dongle key) on board 1
